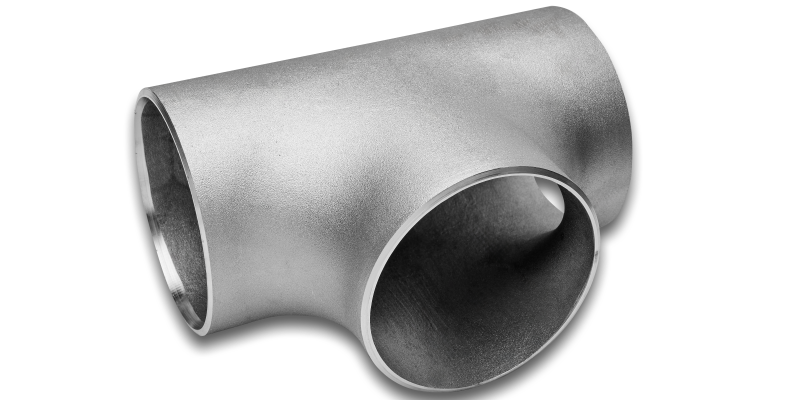

| Product | Seamless carbon steel fittings to EN standards |
|---|---|
| Standard | EN 10253-1, EN 10253-2 |
| Dimensions | 21.3 x 2 mm – 508 x 12.5 mm |
| Type |
Elbows 45°, 90° and 180°, type 3D and 5D , in some cases 2D Tees, Reducing tees, Caps, Eccentric reducers: Type A Concentric reducers: Type B Saddles acc. to DIN 2618 |

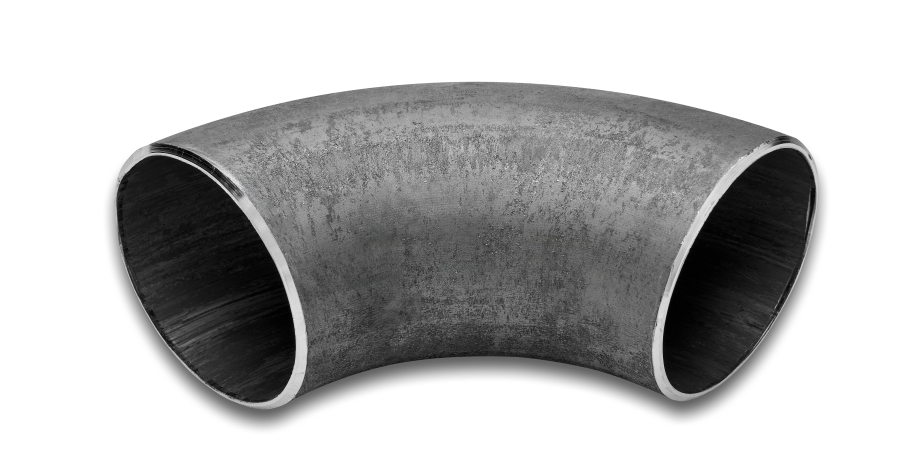

| Product | Welded carbon steel elbows to EN standards |
|---|---|
| Standard | EN 10253-2 |
| Dimensions | 406.4 x 6.3 to 813 x 8 |
| Delivery conditions |
Manufactured from longitudinally welded pipes, with bevelled ends |
| Materials | P235GH to EN 10217 |
| Surface | black, not oiled |
| Certification | 3.1 acc. to EN 10204 |
| Type | Type A |

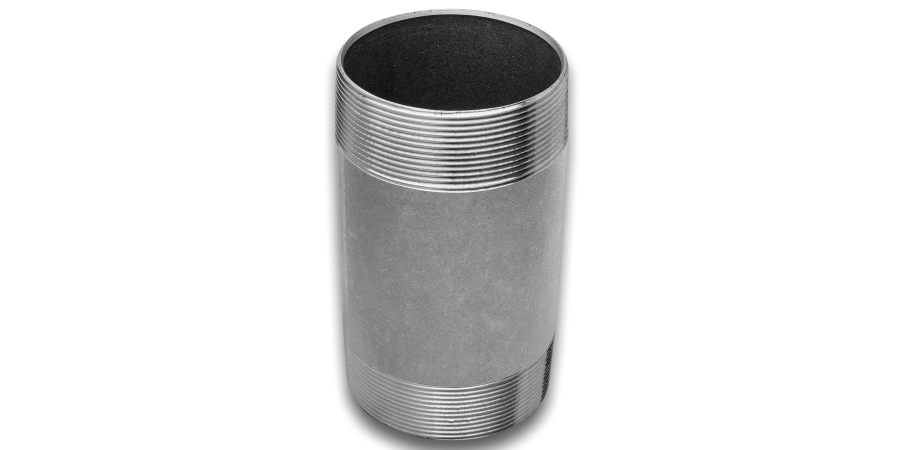

| Product | Forged carbon steel fittings to EN standards |
|---|---|
| Standard | EN 10241 |
| Dimensions | 1 / 8" – 4" |
| Delivery conditions |
Sockets with female thread Pipe nipples with male thread on both ends |
| Surface | Black or galvanized |
| Type | Sockets no.16, Pipe nipples no. 23 |

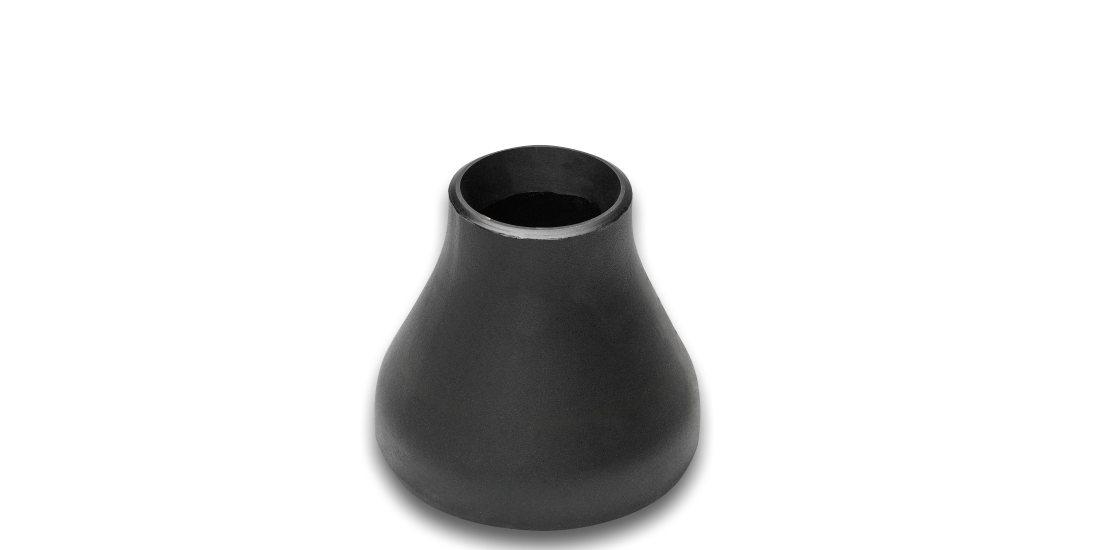

| Product | Seamless carbon steel fittings to ASTM/ASME standards |
|---|---|
| Standard | ASME B16.9 |
| Dimensions |
Diameter: 1 / 2" – 24" , caps up to 48" Wall thickness: STD, XS, XXS or Sched. 20 – 160 |
| Delivery conditions |
with bevelled ends |
| Materials | A / SA234 WPB / P265GH or A / SA420 WPL6 (low temp) |
| Surface |
Mill standard varnish Elbows 1" – 8" in STD and XS also available in black, not varnished |
| Certification | 3.1 acc. to EN 10204 |
| Type |
Elbows, Caps, Concentric Reducers, Eccentric Reducers, Equal Tees, Reducing Tees |
| Product | Welded carbon steel fittings to ASTM/ASME standards |
|---|---|
| Standard | ASME B16.9 |
| Dimensions |
Diameter: 28” – 48” Wall thickness: STD, XS |
| Delivery conditions |
with bevelled ends |
| Materials | A / SA234 WPB |
| Surface | Mill standard varnish |
| Certification | 3.1 acc. to EN 10204 |
| Type | Elbows, Concentric Reducers, Tees, Caps |

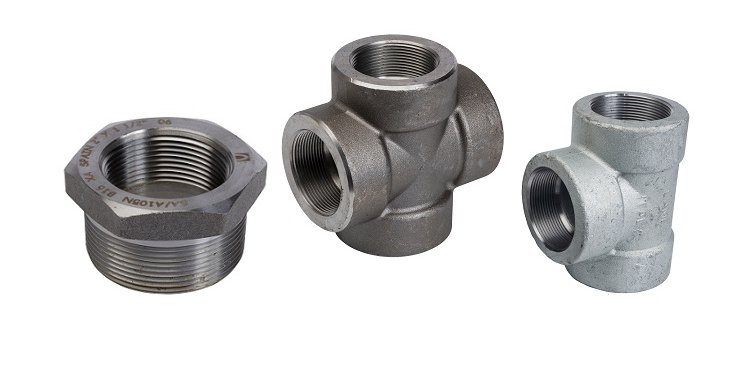

| Product | Forged steel fittings 3000/6000 lbs to ASME/MSS standards |
|---|---|
| Standard | ASME B16.11 / BS 3799 / MSS SP-79 and / or MSS SP-83 |
| Tolerances | Diameter 1 / 8" – 4" , o-lets up to 12" |
| Delivery conditions |
SW or SCR (NPT) |
| Materials |
A / SA105 O-lets: A / SA105 / A / SA350 LF2 Pipe nipples: A / SA106 Gr. B Swage nipples: A234 WPB |
| Surface | Mill standard varnish or galvanized |
| Certification | 3.1 acc. to EN 10204 |
| Type |
Bushings, caps, couplings, crosses, elbows, half couplings, hex. head plugs, pipe nipples, hex, nipples, swage nipples, reducing inserts, round head plugs, square head plugs, street elbows, tees, unions, o-lets |
