| Product | Stainless steel flanges to EN standards |
|---|---|
| Standard | EN 1092-1 |
| Dimensions | NW 10 (17.2 mm) – NW 800 (813 mm) |
| Delivery conditions |
Class PN10 / 16 / 25 / 40 |
| Materials |
Material number: 1.4301/1.4307 1.4401/1.4404 Steel grade (ASTM/ASME/ANSI) Tp 304/304L Tp 316/316L other materials on request |
| Certification | 3.1 acc. to EN 10204 |
| Type |
Type 1A Type 2A Type 5A Type 11B Type 13B |
| Origin | Non-EU |
| Product | Stainless steel pressed flanges to EN standards |
|---|---|
| Standard | EN 1092-1 |
| Dimensions | NW 15 (21.3 mm) – NW 300(323.9 mm) |
| Delivery conditions |
Class PN10/16 |
| Materials | 1.4301/1.4307 |
| Certification | 3.1 acc. to EN 10204 |
| Type | Type 2 (slip-on) |
| Origin | EU |
| Product | Stainless steel flanges to EN standards with ASTM connection |
|---|---|
| Standard | EN 1092-1 |
| Dimensions |
NW15 (21.3 mm / 1/2") – NW300 (323.9 mm / 12") Connection thickness 10s/40s (STD)/80s (XS) |
| Delivery conditions |
Class PN10/16/25/40 |
| Materials |
Material number: 1.4301/1.4307 1.4401 / 1.4404 Steel grade (ASTM/ASME/ANSI) Tp 304/304L Tp 316 / 316L other materials on request |
| Certification | 3.1 acc. to EN 10204 |
| Type | Type 11B (welding neck) |
| Origin | Non-EU |

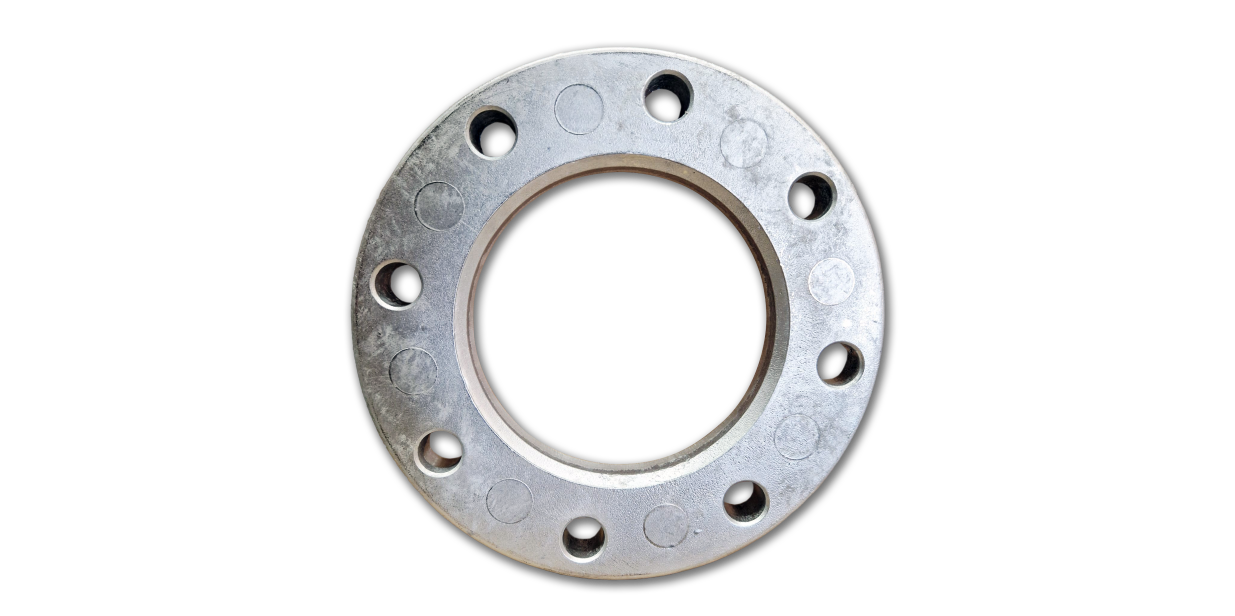

| Product | Aluminium flanges according to EN standards |
|---|---|
| Standard | EN 1092-1 |
| Dimensions | NW15 (21.3 mm) - NW300 (323.9 mm) |
| Delivery conditions |
Plain and coated |
| Materials | Aluminium |
| Type | Type 2 (slip-on) |
| Origin | EU |
| Product | Stainless steel flanges to ASTM/ASME standards |
|---|---|
| Standard | ASTM A182 / ASME B 16.5 |
| Dimensions |
Outside diameter: 1 / 2" – 24" Connection thickness: 10s, 40s (STD), 80s (XS), 160, XXS |
| Materials |
Material number 1.4301/1.4307 1.4401/1.4404 Steel grade (ASTM/ASME/ANSI) Tp 304/304L Tp 316/316L other materials on request |
| Certification | 3.1 acc. to EN 10204 |
| Type |
Blind Threaded Slip on Lap joint Socket weld Welding neck |
| Pressure | 150 / 300 / 600 / 1500 lbs |
| Origin | EU and non-EU |
