| Product | Stainless steel fittings to EN standards, welded |
|---|---|
| Standard | EN 10253 (3 or 4) |
| Dimensions |
13.5mm – 813 mm other dimensions on request |
| Materials |
1.4301 / 1.4307 1.4401 / 1.4404 other materials on request |
| Certification | 3.1 acc. to EN 10204 |
| Type |

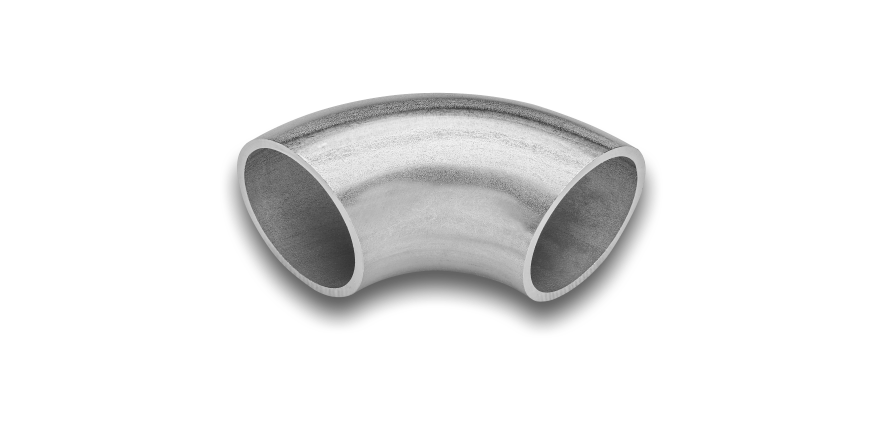

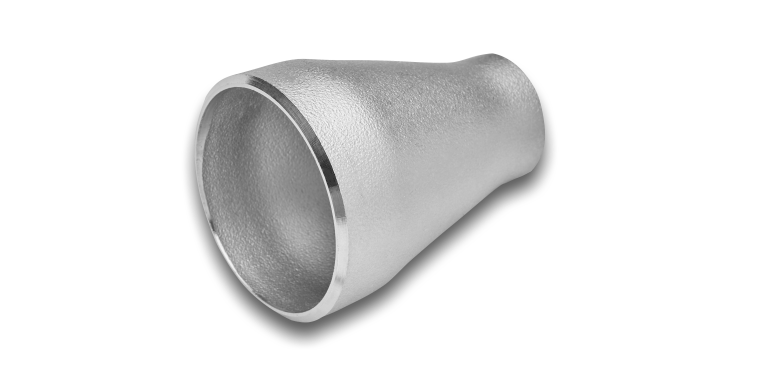

Elbows 90°, R=1.5D, R=D+100, 5S Elbows 45°, R=1.5D Tees (equal, reducing, short branch, pressed) Concentric reducers Eccentric reducers Caps Collars Pipe clip sets Pipe clamps |
| Origin | EU |
| Product | Stainless steel fittings to ASTM standards, welded |
|---|---|
| Standard | ASTM A403/ASME B16.9 |
| Dimensions |
1/2" S10S to 24" S40S other dimensions on request |
| Materials |
Material number: 1.4301/1.4307 1.4401/1.4404 Steel grade (ASTM/ASME/ANSI): Tp 304/304L Tp 316/316L other materials on request |
| Certification | 3.1 according to EN 10204 |
| Type |
Elbows 45° (LR) Elbows 90° LR/SR) Tees (equal and reducing) Concentric Reducers Eccentric Reducers |
| Origin | Non-EU |
| Product | Stainless steel fittings to ASTM standards, seamless |
|---|---|
| Standard | ASTM A403 / ASME B16.9 |
| Dimensions |
1/2" S10S to 12" S80S other dimension on request |
| Materials |
Material number: 1.4301/1.4307 1.4401/1.4404 Steel grade (ASTM/ASME/ANSI): Tp 304/304L Tp 316/316L other materials on request |
| Certification | 3.1 acc. to EN 10204 |
| Type |
Elbows 45° Elbows 90° (LR/SR) Caps Tees (equal and reducing) Concentric Reducers Eccentric Reducers Stub ends |
| Origin | EU and non-EU |
| Product | Stainless steel socket-weld fittings 3000 lbs |
|---|---|
| Standard | ASTM A182 / ASME B16.5 |
| Dimensions | 1/8" - 2" |
| Materials |
Material number: 1.4301/1.4307 1.4401/1.4404 Steel grades (ASTM/ASME/ANSI) Tp 304/304L Tp 316/316L |
| Certification | 3.1 acc. to EN 10204 |
| Type |
Couplings, Half couplings, Pipe nipples, Hexagon nipples, Elbows 45°, Elbows 90°, T pieces, Reducing T pieces, Unions, Caps, Bushings, Plugs, Sockolets, Weldolets, Threadolets |
| Origin | EU |
| Product | Stainless steel NPT fittings 3000 lbs |
|---|---|
| Standard | ASTM A182 |
| Dimensions | 1/2" up to 2" |
| Materials |
1.4301 / 1.4307 / 304 (L) 1.4401 / 1.4404 / 316 (L) |
| Certification | 3.1 according to EN 10204 |
| Type | Couplings, Half couplings, Pipe nipples, Hexagon nipples, Elbows 45°, Elbows 90°, T pieces, |
| Origin | EU |
| Dimensions | Diameter: 1/8" – 4" |
|---|---|
| Materials | 304/304L / 316/316L or 1.4408 (casted) |
| Certification | 3.1 acc. to EN 10204 only for BSP produced from pipe or bar (not for casted) |
| Type |
Unions, Caps, Elbows, T pieces, (negative) Bushings, Nuts, Y-crossings, Plugs, Half sockets, Sockets, Reducing sockets, Welding nipples, Barrel nipples, Parallel nipples, Hexagon nipples, Hose nipples |
| Origin | EU and non-EU |
| Dimensions |
Diameter: 6 - 28 mm (1/8" - 1") Wall thickness: 2 mm - 5 mm |
|---|---|
| Materials | Material number 1.4571 |
| Type |
Elbows Couplings Elbow couplings T Couplings Straight couplings Cutting rings |
| Origin | EU |
